The Belmont Leisure Mains Socket Tester with Reverse Polarity is a practical and reliable UK 240V circuit testing tool designed to quickly check socket wiring, voltage levels, and RCD safety. Suitable for 50/60Hz systems, it provides clear visual indication of wiring status and voltage readings, helping identify common electrical faults with ease. Compact and easy to use, it is ideal for home, workplace, and leisure applications.
The tester measures multiple voltage values, including operating voltage, leakage voltage, and RCD working voltage, making it a versatile solution for everyday electrical safety checks. It also includes a built-in RCD test function, allowing users to confirm that leakage protection devices are functioning correctly.
- Measures voltage across a wide range from 90–250V
- RCD working voltage: 220V ± 20V
- Leakage voltage detection range: 0–99V

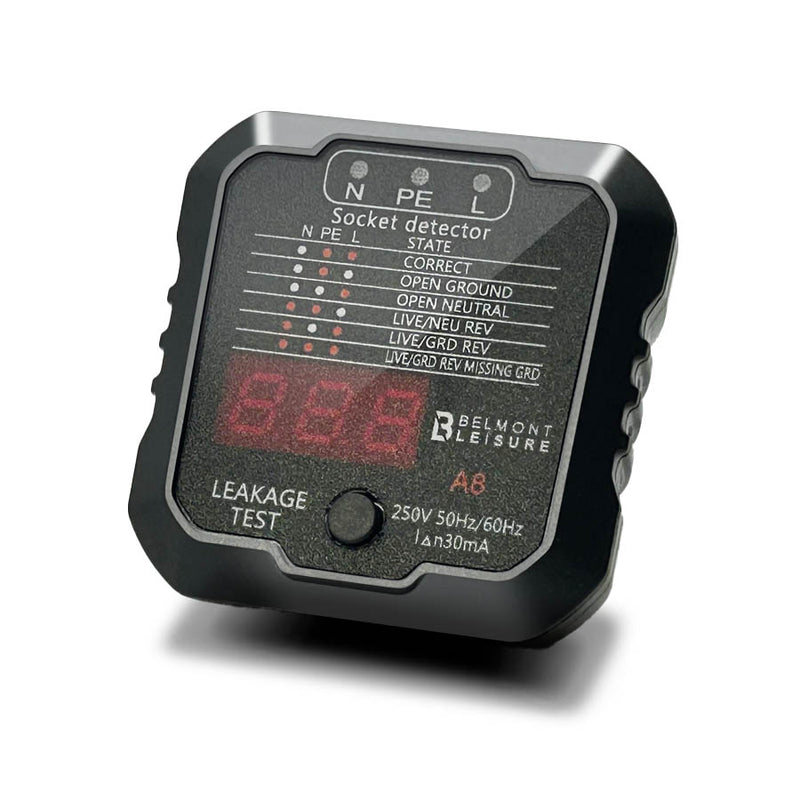

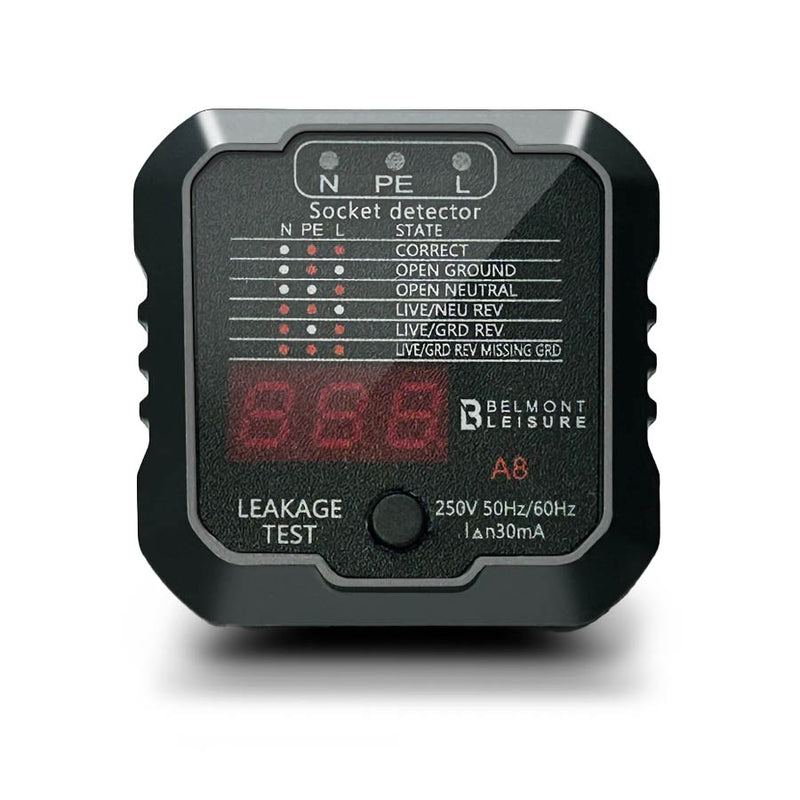

- Detects correct wiring and common socket faults
- Identifies open ground, open neutral, live/neutral reverse, live/ground reverse, and missing ground
- Built-in RCD test button to check leakage protection devices
- Quick plug-in operation with clear, easy-to-read indicators
To test an RCD, simply insert the tester into a correctly wired three-pin socket and press the RCD button for less than three seconds. A functioning leakage switch will trip; if it does not, this indicates a potential fault. This makes the tester ideal for routine circuit inspections, new property checks, and equipment testing.
- Suitable for household, office, retail, and factory circuit testing
- Ideal for new home electrical acceptance testing

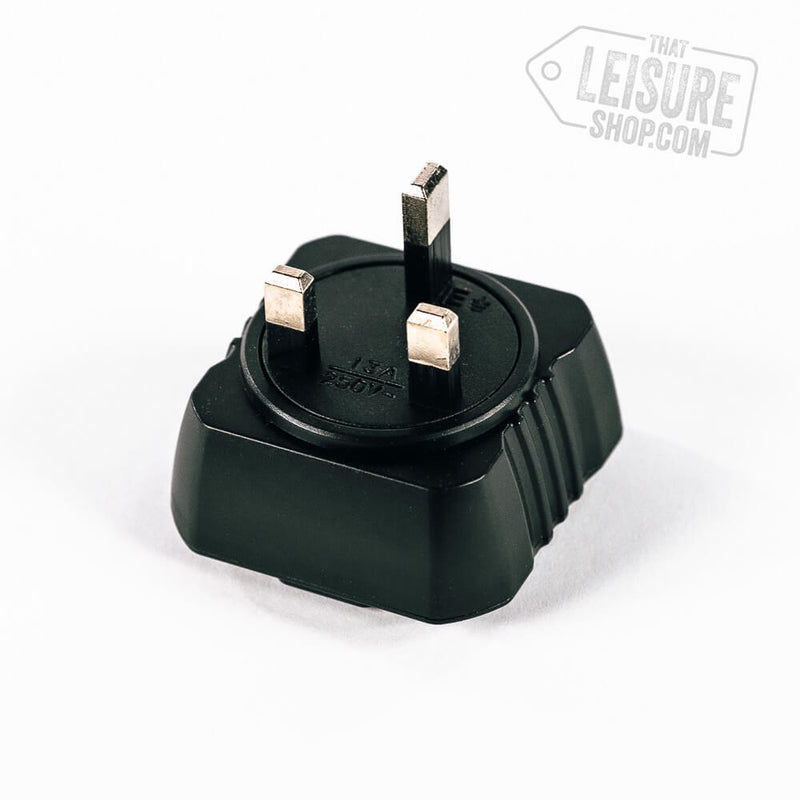

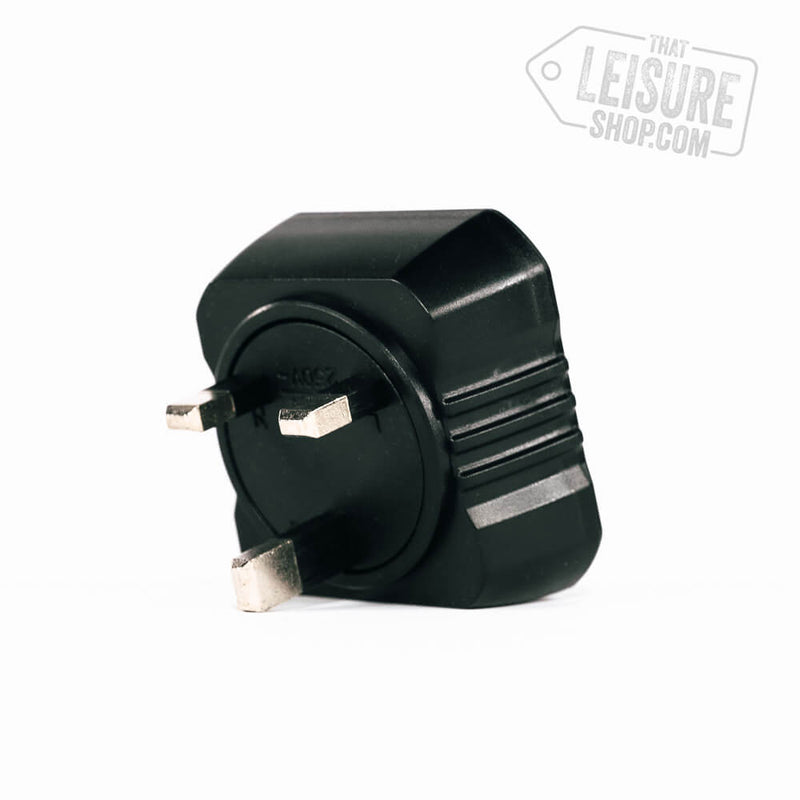

- UK plug design for 240V systems
Specifications:
Colour: Black
Material: Flame-retardant ABS
Operating Voltage: 250V, 50/60Hz
Accuracy: ± (2.0% + 2)
RCD Test Current: >30mA
Working Environment: 0°C to 40°C, 20%–75% RH
Storage Environment: -10°C to 50°C, 20%–80% RH
Size: 68 × 65 × 60mm
Weight: 74g
Please note that displayed voltage readings are for reference only.
Package Includes:
1 × Belmont Leisure Mains Socket Tester
