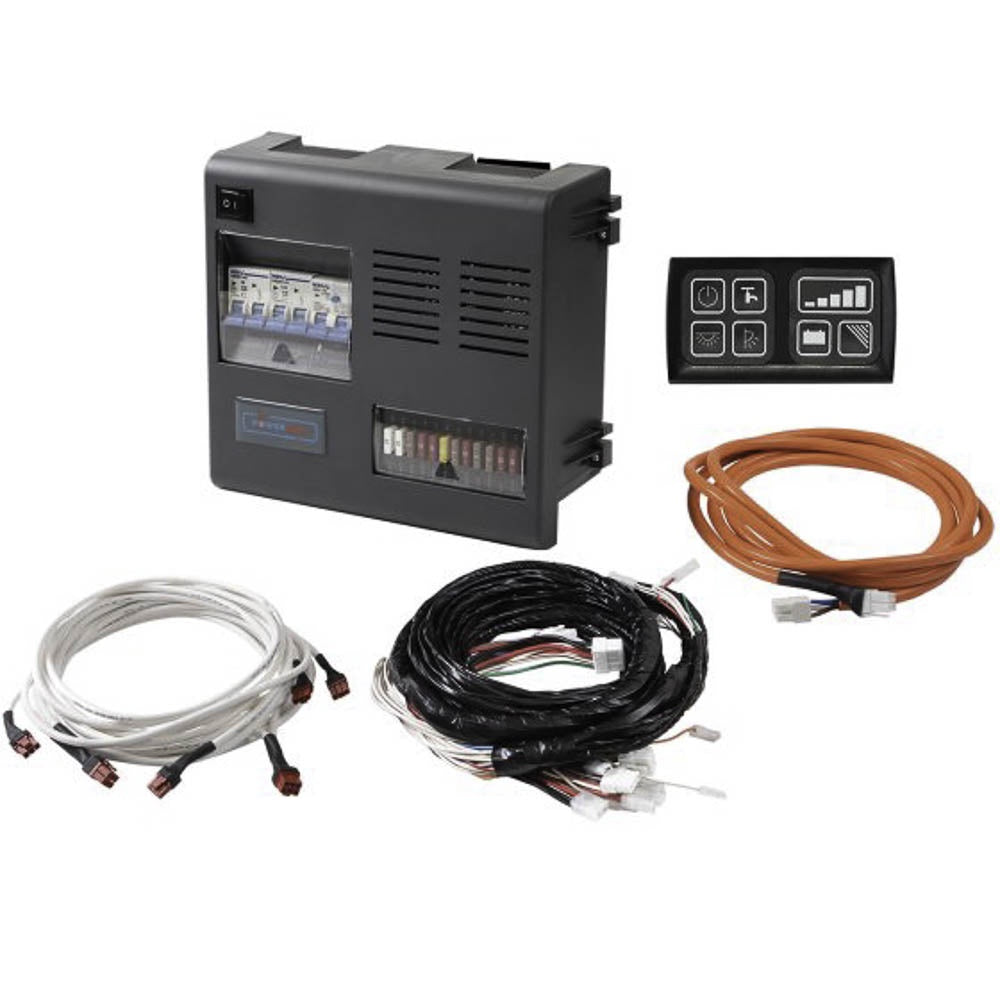

Van conversion electrical distribution unit and harness kit with control panel
A compact yet powerful PDU unit, this van conversion electrical distribution unit and harness kit is a complete plug-and-play system, with a compact yet powerful PDU unit and sleek control panel.
The PDU has a 230V input to a 25amp RCD that provides 4 230V outputs for sockets and appliances through a 16-amp MCB. It also has a 6amp MCB for the 10amp power supply which converts 230V to 12V. This kit also comes with all the connectors and terminals needed to connect to the PDU.
The Vegas control panel is x2 C-Line in size. The button panel has a master switch, light switch and awning light switch and the meter panel has a voltmeter.
There are 12 separate fuse-protected outputs for:
- Auxiliary
- Lights
- Hob/Oven
- Heater
- Pump/toilet
- Control Panel Ignition
- Control Panel Perm
- Fridge
- Fridge 3S
- Leisure Battery
- Vehicle Battery
Included in Kit
PDU
Wiring Harness
Vegas Control Panel
PDU Dimensions
Width: 307mm
Depth: 93mm
Height: 262mm
