PV Logic - Fold Up 8w 12v Solar Battery Maintainer
PV Logic Fold-Up 8W 12V Solar Battery Maintainer
Keep your 12V batteries topped up and protected with the PV Logic 8W Solar Battery Maintainer. Compact and portable, this fold-up solar panel is perfect for preventing batteries from going flat in cars, motorhomes, caravans, boats, and other leisure vehicles.

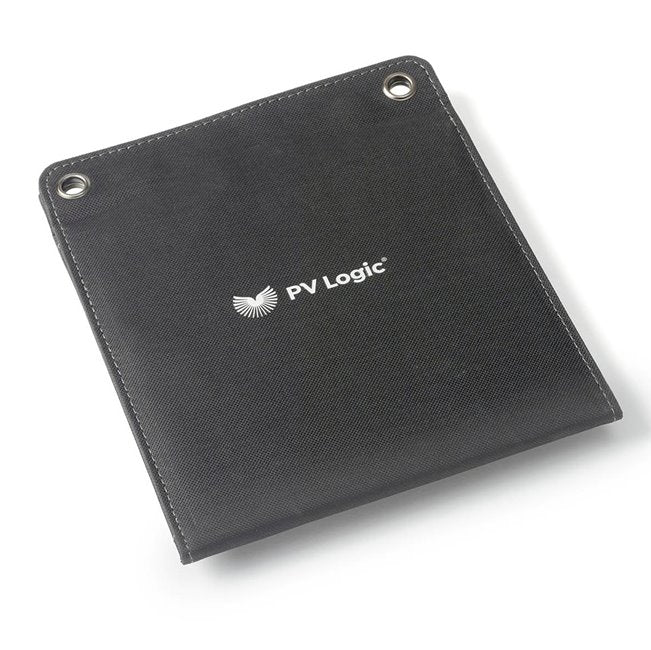

The panel folds down to a tiny 230 × 198 × 15 mm – small enough to store in your glove box – and unfolds into twin crystalline panels that capture the sun’s energy. With no risk of reverse current drain, it can be safely left connected for peace of mind.

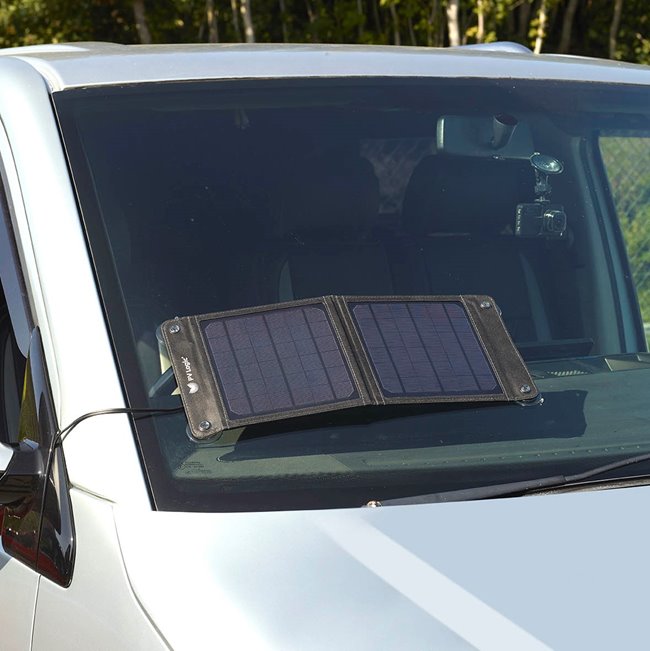

Connection is simple with the supplied 12V auto plug or crocodile clips, and the included rubber suction cups let you secure the panel neatly to your vehicle’s windscreen or another sun-facing surface.
Key Features
-
8W twin crystalline solar panels – reliable, efficient charging
-
Compact fold-up design – closed size 230 × 198 × 15 mm
-
Easy connections – via 12V auto plug or crocodile clips (both supplied)
-
Battery safe – integrated reverse feed diode prevents current drain
-
Portable & versatile – position inside or outside, with suction cups included
-
Perfect for storage periods – ideal for cars, motorhomes, caravans, and boats
Technical Specifications
-
Power output: 8W
-
Max current (Imp): 0.44A
-
Max voltage (Vmp): 18V
-
Approx. watt-hours per day: 48W
-
Approx. amp-hours per day: 2.64A
-
Battery protection: Integrated reverse feed diode (for batteries ≥ 60Ah)
-
Cable length: 3.2 m (between panel and final connections)
-
Dimensions:
-
Closed: 230 × 198 × 15 mm
-
Open: 470 × 198 × 7.5 mm
-
-
Weight: 600 g
-
Manufacturer Warranty: 2 years

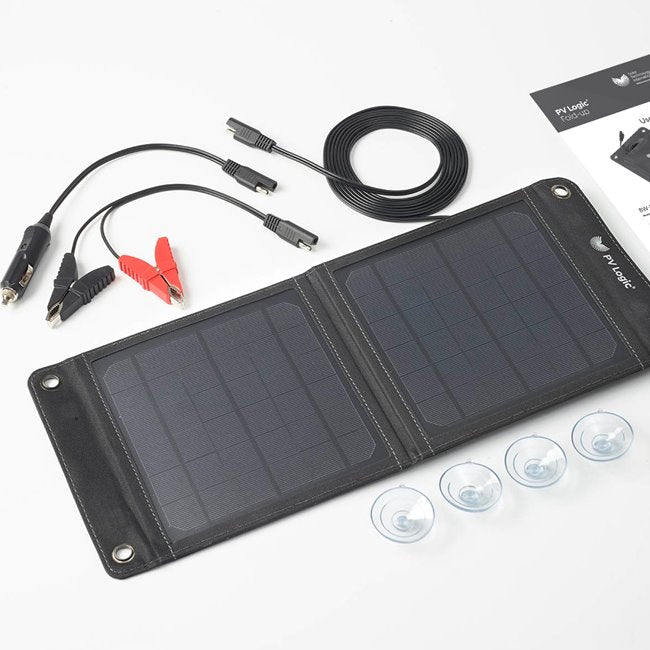

What’s Included
-

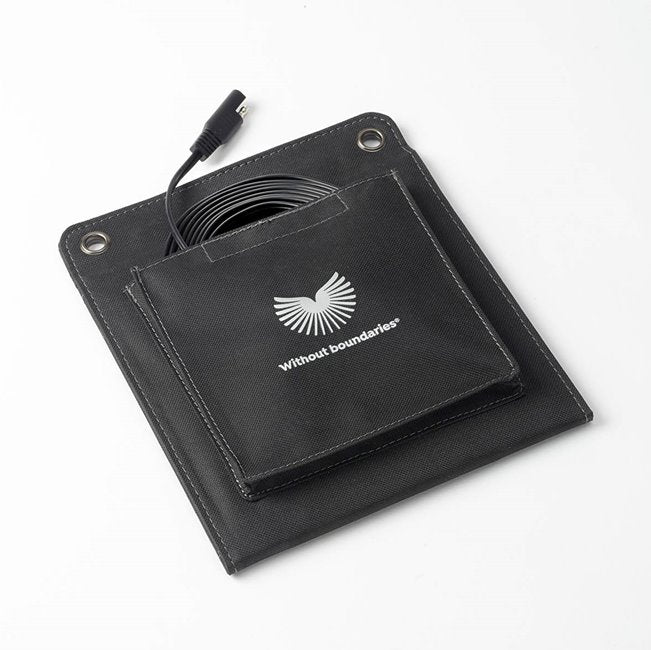

1 × 8W fold-up solar panel with cable storage pocket
-
1 × 3 m cable fitted to the panel
-
2 × 200 mm extension cables (one with crocodile clips, one with 12V auto plug)
-
4 × rubber suction cups
-
1 × user manual
The PV Logic 8W Fold-Up Solar Maintainer is the simple, reliable solution to keep your batteries charged and ready to go.
